| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

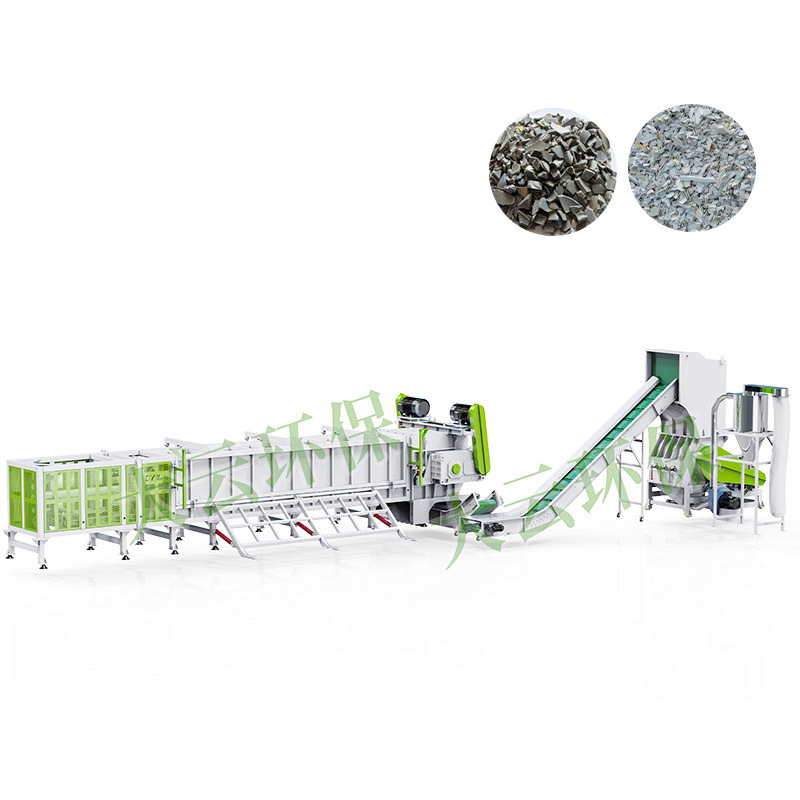

DYSSG shredder can be used to shred the PE, PP, PVC pipe with a diameter of 1600mm, and pipes with a length of 3-6m can be directly shredded without cutting
The pipe is pushed to the center of the shaft by hydraulica to crush. The crushed materials enter the crusher through the conveyor belt for secondary crushing to achieve the required crushing particle size. Materials are fully and effectively crushed in the crushing chamber.
| MODEL | ROTOR BLADE SWING DIAMETER(MM) | DRIVE POWER(KW) | MAX. SHREDDER PIPE(DIAMETER MM) | OUT PUT(KG/H) |
| DYSSG- 630 | Ф848 | 2*30 | 630 | 800-1000 |
| DYSSG- 800 | Ф1028 | 2*37 | 800 | 1000-1200 |
| DYSSG- 1000 | Ф1258 | 2*45 | 1000 | 1200-1500 |
| DYSSG- 1200 | Ф1478 | 2*55 | 1200 | 1500-2000 |
| DYSSG- 1600 | Ф1968 | 2*110 | 1600 | 1800-2500 |
