| Place of Origin: | China |
| Brand Name: | Jwell |
| Certification: | ISO CE UL TUV |
| Competitive advantage: | High quality, high capacity, high stability, worldwide after-sales service, more than 30 years developing experience |

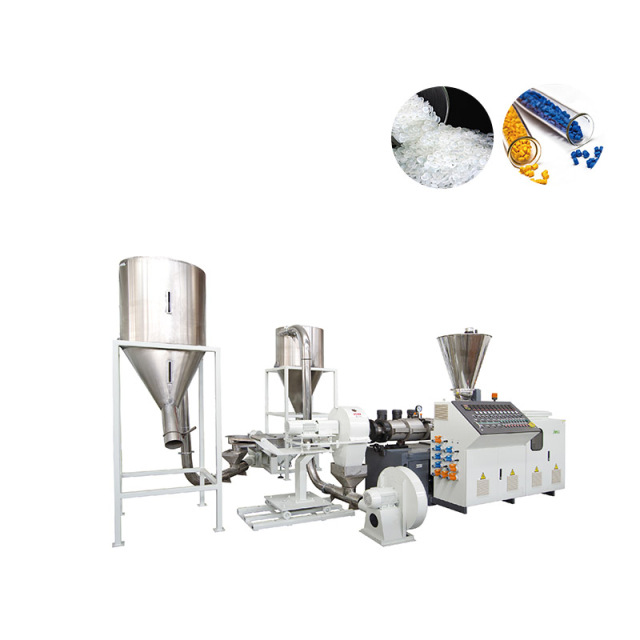

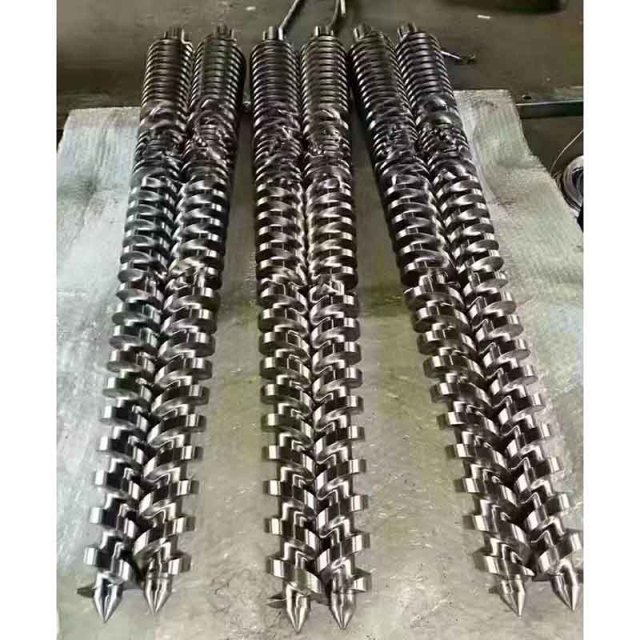

It is a complete set of equipment consisting of a series of conical twin-screw extruders and corresponding pelletizing auxiliary machines.It is mainly suitable for the granulation of PVC fillers.

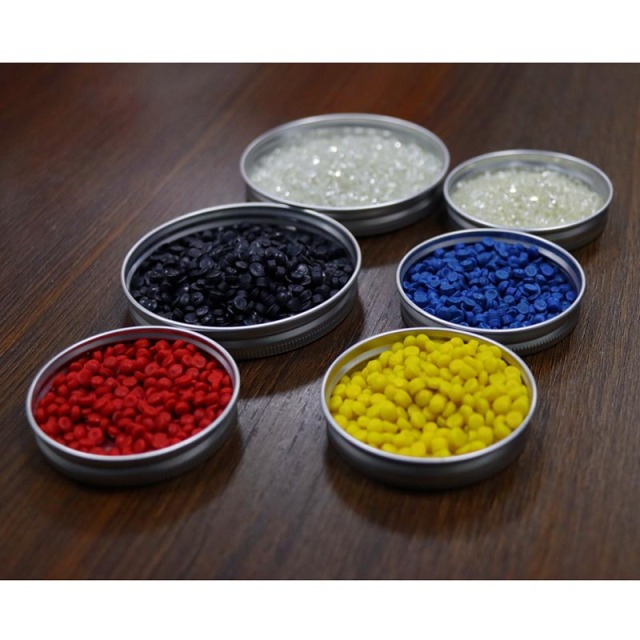

The equipment consists of a series of conical twin-screw extruders and corresponding pelletizing auxiliary machines. The plastic particles produced are uniform, compact and beautiful. Auxiliary machine adopts die surface cutting, wind conveying aggregate, vibration separation, cooling, automatic production, improve production efficiency. At the same time, according to customer requirements, we can provide debris recovery system and dust removal device.
| MODEL | SCREW SIZE(MM) | PELLET SIZE (MM) |
POWER OF MAIN MOTOR (KW) |
OUT PUT (KG/H) |
| SJZ55 | 55/110 | Ф3-Ф4 | 22 | 100-120 |
| SJZ65 | 65/132 | Ф3-Ф4 | 37 | 220-260 |
| SJZ80 | 80/156 | Ф3-Ф4 | 55 | 320-450 |
| SJZ90 | 92/188 | Ф3-Ф4 | 110 | 650-800 |
Process steps
